Add a Multi-Tiered Location to an Item

Objective

To add a multi-tiered location to an item within the create or edit page of an item (e.g. submittal, RFI, variation, etc.).

Background

If your Project Administrator has enabled this functionality on the project, you may be able to add multi-tiered locations "on the fly." This means that when adding a location to an item, you will be able to create a new one from within the item's edit or create page to add to the master list of project locations.

Things to Consider

Steps

  1. Navigate to one of the supported tools.
    Note: See Things to Consider above for a list of tools that support creating new locations.
  2. Click the Edit button next to the item you wish to add a multi-tiered location to or create a new item on that tool. (Note: Instructions on how to create and edit are available by searching for "Create a ____" or "Edit a ____" in the search bar at the top of this page.)
  3. Select the drop-down menu next to "Location."
  4. Use the type-ahead search bar to find the location you wish to add to the item or add a new location.

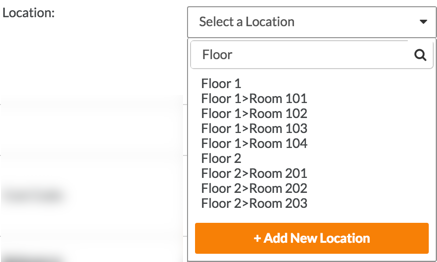

    select a multi tier location.png


Add a New Location

You can add a brand new multi-tiered location or you can add a new sub location to an existing multi-tiered location.

Add a new multi-tiered location
  1. Type in the name of your first tier location. (Note: See What are multi-tiered locations? The first tier location will be the parent location to your sub locations and should be the most broad. For example, in the list in the image above, we could add "Floor 3".)
  2. If the 1st tier location already exists, you will be prompted to add the existing location; if the location doesn't exist, click + Add [location name].
  3. Type the name of your second tier location. (Note: The second tier locations will be a sub location to the first tier location and it should refer to a location inside of the 1st tier. For example, you could add "Room 301" to "Floor 3").
  4. Click +Add [location name] the green tick.

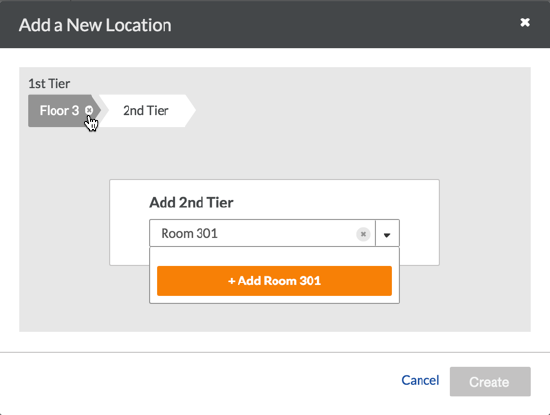

    add a new location to an item.png

  5. Add as many sub locations as needed to apply to the location of the item. (Note: It is recommended that you follow the best practices for adding locations that your company has set up.)

    At any point in this process, you may delete a tier and all of its sub tiers by hovering your mouse over the breadcrumbs and clicking the X to delete the location and all of its sub locations. If the location or sub location already existed in Procore before opening this multi-tier location picker, it will not delete it permanently).

  6. Click Create when you're done adding the multi-tiered location to the item. (Note: The item will automatically be placed in the location field of the item).
  7. Click Update or Create at the bottom of the page to save the location to the project.
Add a new tier to an existing location



  1. Select the first tier location you wish to add a sub location to or use the type-ahead menu to find the first tier location you would like to add a sub location to.
  2. Follow the location tier path in a similar way until you reach the tier you wish to add a new sub location to.
  3. Type the name of your sub location.
  4. Click +Add [location name] the green tick.
  5. Click Create when you're done adding the multi-tiered location to the item. (Note: The Create button will not be selectable unless you create a new sub location. Once you click Create, the new location will automatically be placed in the location field of the item).
  6. Click Update or Create at the bottom of the page to save the location to the project.
