View Documents in the Document Management Tool

  1. Last updated
  2. Save as PDF

Also available on  icon-apple-logo.png  icon-android-logo.png

regional availability
The Document Management tool is available in select countries. It is not yet available for Procore accounts in the United States. For more information, please reach out to your Procore point of contact.

Objective

To view documents that have been uploaded to the Document Management tool.

Things to Consider

  • Required User Permissions:
    • 'Standard' or 'Admin' level permissions to the project's Document Management tool.
      Note:
      • Users can only view documents that they have access to through a permission group. See How do permissions work in the Document Management tool?
      • Users with 'Admin' level permissions to the Document Management tool can view all files that have been added to the 'Uploads' tab. Users with 'Standard' permission can only view the files that they have uploaded.
  • Additional Information:
    • The following file types can currently be opened in the viewer:
      Note: .doc, .docx, .ppt, .pptx, .xls, and .xlsx automatically open in Office 365.
      • Documents: .pdf, .doc, .docx, .ppt, .pptx
      • 3D models: .rvt, .nwd, .nwc, .ifc, .dwg, .dwf, .dwfx (for details see View 3D Models in the Document Management Tool)
      • Spreadsheets: .xls, .xlsx
      • Images: .jpg, .jpeg, .png, gif, .svg, .webp
      • Videos: .mov, .mp4
      • Audio: .mp3, .mp4, .wav

Video



Steps

 Tip
If you want to be able to quickly access and view a specific set of documents, you can create your own saved views. See Create a Saved View in the Document Management Tool.
  1. Navigate to the project's Document Management tool.
  2. Follow the steps below depending on what documents you want to view in the Document Management tool:

View All Documents

View a list of all submitted documents that you have access to. Each document has its own row, with attributes shown in each column.

  1. Click the Documents tab.
  2. Click All Documents at the bottom of the 'Saved View' panel.
    Note: If the Saved View panels is hidden, click the Show Saved Views icon-show-saved-views.png icon at the top of the table.
  3. Switch between viewing the Latest Revision of each document and viewing All Revisions using the buttons in the upper right, as needed.

    2024-07-09_All Documents saved view.png

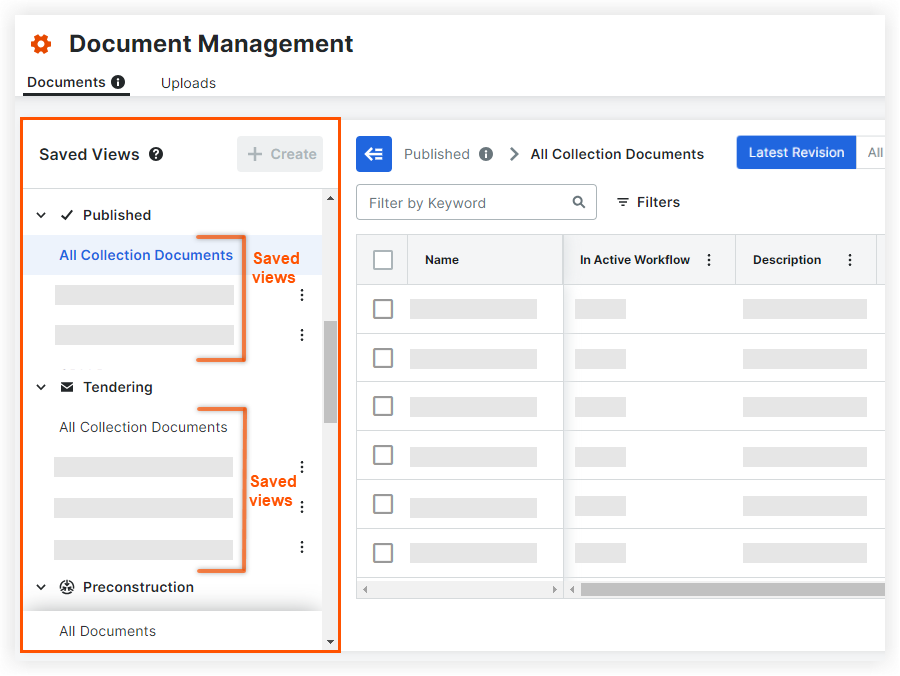

View Documents in Saved Views

View a list of documents that fit the filters of a particular saved view, are submitted and you have permission to view.

  1. Click the Documents tab.
  2. In the Saved Views panel, click the name of a saved view to access all documents within that view.
  3. Switch between viewing the Latest Revision of each document and viewing All Revisions using the buttons in the upper right, as needed.
    2024-07-09_Saved Views.png

View a Document in the Viewer

  1. Click the Documents or Uploads tab to find the document that you want to view.
    Note: Use the search bar and filters if necessary. See Search for and Filter Documents.
  2. Click the document name to open it.
  3. The document is shown in the viewer with the following options:
    • Zoom Settings: To zoom in or out of the document, click the + and - symbols. Click the dropdown menu to select a percentage, Zoom to Fit or Zoom to Width.
    • Show Pages: To view a list of pages that exist in the PDF document, click the Show Pages icon on the left side of the page.
    • View Previous or Next Document: To view the previous document, click the left arrow. To view the next document, click the right arrow.
    • Open Another Document or Revision: To open a different document or revision, select it from the dropdown menus at the top of the page.
    • Markups: To open the Markups side panel, click Markups or the markup icon. You can show, hide or filter markups as needed. See View Markups.
    • Information: To view information about the document, click the info icon-info3.png icon.
    • Search: To search text on the document, click the search icon and enter a search term.
    • Workflows: To view the workflow on the document (if available), click the workflow icon.
    • Download: To download the document to your computer, click the download  icon-download-cloud.png  icon.
    • Keyboard Shortcuts: To view keyboard shortcuts, click the keyboard icon in the bottom right corner.
  4. To exit out of the viewer, click Close.

View Document Revisions

  1. Click the Documents tab.
  2. Find the document that you want to view a revision for.
  3. Click the value in the Revision column.
    This value is the latest revision for that document and clicking it opens a Revisions panel listing all revisions that have been uploaded for the document.
  4. To open the revision in the viewer, hover over the row in the main table and click the viewer icon.
    Note: When navigating to a document from a saved view, if you view an older revisions of a document, Procore adds a banner to the top of the document informing you that it's not the latest revision of the document in the collection you're currently viewing.
 Tip

Switching between viewing only the Latest Revision of each document and viewing All Revisions using the buttons in the upper right is another way to see other revisions of the same document. The main table will update according to your choice and the Revision column shows the revision identifier for each of the document's revisions. You may need to re-sort the table by clicking on the 'Name' column header if you want a document's revisions grouped together in the list.

2024-07-10_All Revisions button.png

View Uploads

  1. Click the Uploads tab.
  2. Uploaded files are listed in the table. Each file has its own row, with its details shown in each column.
    Note: Procore automatically populates certain fields during an upload based on metadata and upload requirements set for the tool and any remaining information must be entered manually. See What are the different fields in the Document Management tool? and What data can Procore automatically populate when uploading files to the Document Management tool? Files that are missing attributes have an asterisk (*) next to the name, with missing fields outlined in red.
  3. If necessary, scroll to the right in the table to view more information. To refine your view, you can adjust the row height and column widths and turn columns on or off. See Configure Your View in the Document Management Tool.
    2024-07-10_Uploads tab.png
